HDMI Over Cat 6 Extender w/ IR, 50 M

Model No.
HLT21-IR & HLR11-IR
Request for Quotation


    Spec

    • Cable Type:Others
    • Model:HLT21-IR & HLR11-IR
    • Enclosure Type:Metal
    • Transmission Distance:50M (Cat 6)
    • Power supply:DC 5V / 1A
    • Maximum resolution:1080p
    • HLR11-IR connector:Input: RJ45*1, 3.5 mm*1; Output: HDMI F*1
    • HLT21-IR connector:Input: HDMI F*1, 3.5 mm*1; Output: HDMI F*1, RJ45*1

    Key Features

    Features

    Compact size transmitter and receiver
    50 meters of transmission distance
    Connects between transmitter and receiver with a Cat5/Cat5e/Cat6 cable.
    Can collaborate with HDMI switch and splitter
    Anti-skid pads
    1 year warranty
    Specification
    ModelHLT21&HLR11
    FeaturesHDMI Over CAT6 Extender
    Input PortHLT21:HDMI female*1, HLR11:RJ-45*1
    Output PortHLT21:RJ-45*1, HLR11:HDMI female*1
    HDCP1.1 / 1.0
    Ethernet Speed1.65GB/s
    Highest Resolution1920*1200, 480p, 720p, 1080i, 1080p
    Transmission Distance50M(CAT 6)
    Size (mm)77(L)*64(W)*25(H)

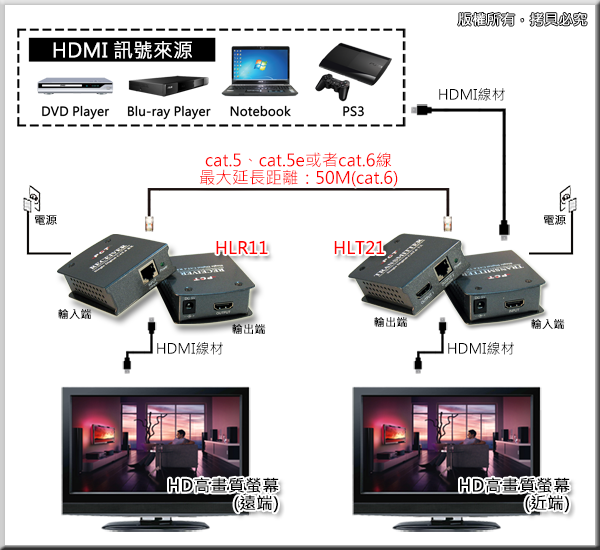

    Applications
