Spec
- Cable Type:Others
- Dimension (mm):45(L)*22(W)*13(H)
- Storage temperature:-20~85℃
- Operating temperature:0~40℃
- Model:HEDID10
- HDCP:No
- Maximum resolution:1080p
- Output Connector:HDMI F*1
- Input Connector:HDMI M*1
- Enclosure Type:Plastic
Key Features
Features
It emulates one set of EDID for detection, and solves display malfunction. It has multiple built-in resolution, for correct display device adjustment.‧Emulates one set of EDID for detection
‧Max. Resolution: 1920*1080@60Hz
‧Supports HDMI 1.3, and digital dual audio channel
‧Max. Input distance: 15M; Output: 15M (Using 24AWG HDMI Cable)
‧Supports 24/30/36 bit Color Depth ‧Simple Plug’n Play, and Hot Swapping available
Specification
| Model | HEDID10 |
|---|---|
| Features | HDMI EDID |
| Input Port | HDMI F*1 |
| Output Port | HDMI M*1 |
| HDCP | NO |
| Highest Resolution | 1920x1080, 1680x1050, 1600x1200, 1600x900, 1440x900, 1440x1050, 1366x768, 1280x1024, 1280x960, 1280x800, 1280x768, 1280x720, 1152x864, 1024x768, 1024x600, 800x600 |
| Operating Temperature/th > | 0~40℃ |
| Store The Temperature | -20~85℃ |
| Size (mm) | 45x22x13 |
| Shell Material | ABS |

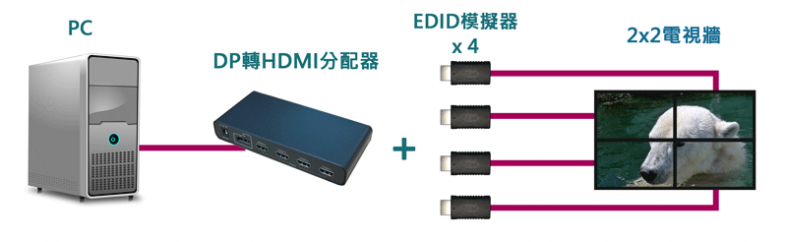

Applications
