Spec
- Interface Type:HDMI,USB
- Products Status:Stock
- Dimension (mm):171(L)*75.5(W)*46.5(H)
- Weight:220g
- Enclosure Type:Aluminum
- External Power adaptor:DC 5V 3A
- Supported resolution:480i, 480p, 720p, 1080i, 1080p, 4K2K
- Transmission distance:Input: 2M, Output: 15M
- HDCP:1.2/1.1/1.0
- Bandwidth:300 MHz
- Selection method:Front panel button, Hotkey, IR Re
- PC side connector:HDMI*4, USB B Type*4, Mic.*4
- Console side connector:HDMI*1, USB A Type*3, Mic.*1
- Model:MHC414
Key Features
Features
- Easy switch between 4 PCs with HDMI monitor using front panel buttons, hotkeys on keyboard, or IR Remote
- Supports Picture in Picture (PIP), 4 source images can display at the same time
- Supports resolution 480i, 480p, 576i, 720p, 1080i, 1080p, and 4K2K
- HDMI Frequencies up to 300MHZ
- HDCP compliant devices
- 1 USB 2.0 port for USB peripheral
- Supports Auto detect function
- Plug and play, no software installation required
- Supports cross-platform of Windows, Linux, and Mac
- 1 year warranty
Specification
| Model | MHC414 |
|---|---|
| Features | 1 KVM for 4 PCs |
| Bandwidth | 300 MHz |
| HDCP | 1.2/1.1/1.0 |
| Highest Resolution | 480i, 480p, 720p, 1080i, 1080p, 4K2K |
| Transmission Distance | Input: 2M, Output: 15M |
| Power Supply | DC 5V 3A |
| Size (mm) | 171(L)*75.5(W)*46.5(H) |

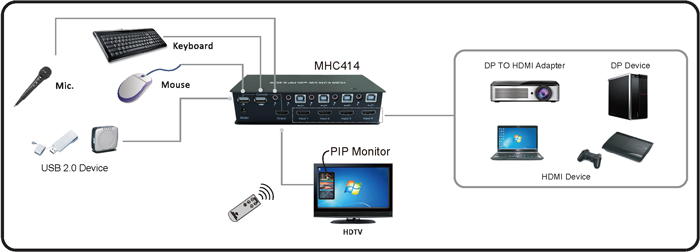

Applications
