3 Port VGA KVM Console Extender w/ Audio & Mic., 100 M

Model No.
MUA22T&MUA21R
Made in
China
Request for Quotation


    Spec

    • Interface Type:D-Sub,RJ-45,USB
    • Products Status:Stock
    • Dimension (mm):120.5(L)*72.5(W)*24(H)
    • Maximum Transmission distance:100M
    • Vertical Frequency:43~120KHz
    • Horizontel Frequency:30~100KHz
    • Maximum Resolution:1080p
    • Model:MUA22T&MUA21R
    • Output connector:MUA22T: VGA F*1, USB*2, RJ45*1
    • Input connector:MUA22T: VGA M*2, MUA21R: VGA M*1, RJ45
    • Enclosure Type:Metal

    Key Features

    Features
    • Extends VGA and USB signals using Cat.5/5e cable to 100M
    • Supports VGA resolution up to 1920*1080
    • Switches PCs using front panel button or hotkey
    • Plug and play, no software installation required
    • Transmitter side can control 2 proximal PCs, and receiver side can control all 3 PCs
    • Integrated cables can save more space
    • Fine-tuing knob on receiver control panel can do video Gain and Focus adjustments for optimum image
    • Supports Windows, MacOS, and Linux
    Specification
    ModelMUA22T+MUA21R
    Input PortMUA22T: VGA M*2, MUA21R: VGA M*1, RJ45*1
    Output PortMUA22T: VGA F*1, USB*2, RJ45*1, MUA21R: VGA F*1, RJ45*1, USB*2, 3.5mm audio*1, mic.*1
    Highest Resolution1920*1080
    Transmission Distance100M
    Power Supply5V
    Size (mm)120.5(L)*72.5(W)*24(H)

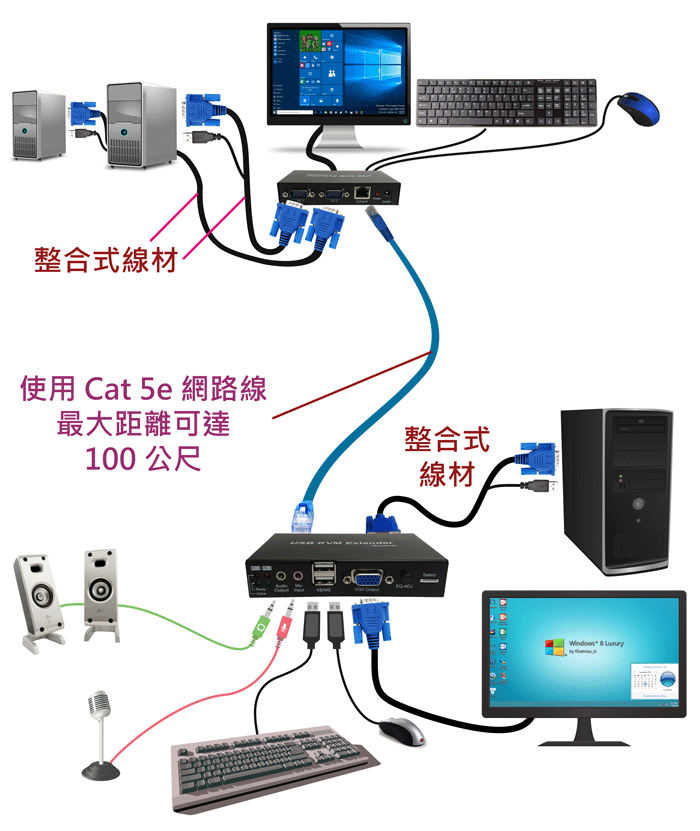

    Applications
