Spec
- Model:MHS1014H
- Dimension (mm):195(L)*96(W)*26.8(H)
- Housing:Metal
- Storage temperature:-10~80℃
- Operating temperature:0~70℃
- External power adaptor:DC 5V 3A
- Transfer distance:Input: 2M, Output:15M (using 24AWG cable)
- Supported resolution:480p, 576i, 720p, 1080i, 1080p
- Bandwidth:10.2 Gbps
- HDCP:Yes
- Output port:HDMI 19 pin Type A*10
- Input port:HDMI 19 pin Type A female*1, USB A Type*1(for update)
- Function:Split 1 HDMI input signal to 10 output signals
Key Features
- Distributes single HDMI source devices to 10 HDMI displays simultaneously
- Can connect up to 100 HDMI display in series
- An ideal solution for business centers, shopping malls, and department stores
- HDCP compliant devices
- Supports 48 bit color depth, full 3D, and 4K*2K resolution
- Plug and play, no software installation required
- Package comes with DC 5V 3A power adaptor for more stable display
- Anti-skid pads
- 1 year warranty
Specification
| Model | MHS1014 |
|---|---|
| Features | Split 1 HDMI input signal to 10 output signals |
| Input Port | HDMI 19 pin Type A female*1, USB A Type*1(for update) |
| Output Port | HDMI 19 pin Type A*10 |
| Bandwidth | 10.2 Gbps |
| Highest Resolution | 480p, 576i, 720p, 1080i, 1080p |
| Operating Temperature/th > | 0~70℃ |
| Store The Temperature | -10~80℃ |
| Power Supply | DC 5V 3A |
| Size (mm) | 195(L)*96(W)*26.8(H) |

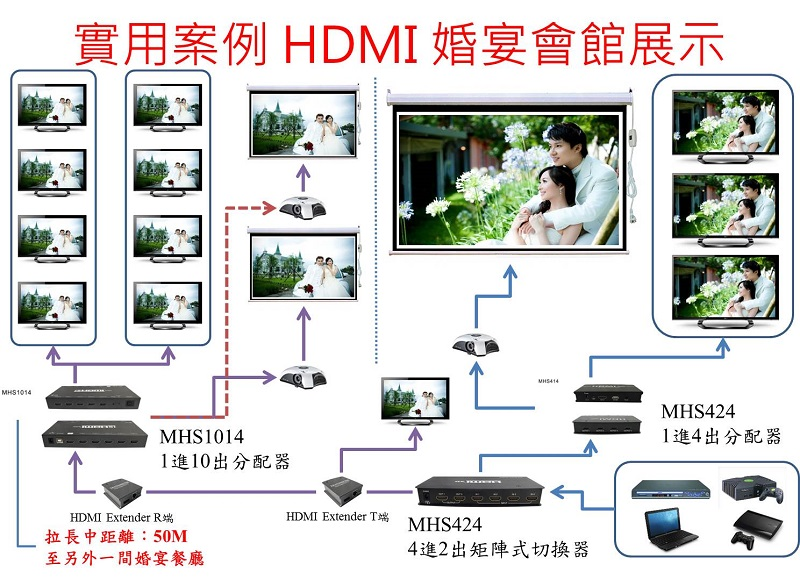

Applications
