16 Port HDMI Splitter

Model No.
MHS1614
Request for Quotation


    Spec

    • Bandwidth:10.2 Gbps
    • Dimension (mm):438(L)*170(W)*43.5(H)
    • Enclosure Type:Metal
    • External power adaptor:DC 5V 3A
    • Function:Split 1 HDMI input signal to 16 output signals
    • HDCP:Yes
    • Input port:HDMI Type A female*1, USB B Type*1, RS232*1
    • Maximum resolution:4K UHD
    • Model:MHS1614
    • Operating temperature:0~70℃
    • Output port:HDMI Type A female*16
    • Selection method:Remote control, RS232
    • Storage temperature:-10~80℃
    • Transfer distance:Input: 2M, Output:15M (using 24AWG cable)

    Key Features

    Features
    • Distributes single HDMI source devices to 16 HDMI displays simultaneously
    • Can connect up to 100 HDMI display in series
    • An ideal solution for business centers, shopping malls, and department stores
    • HDCP compliant devices
    • Supports 48 bit color depth, full 3D, and 4K*2K resolution
    • Plug and play, no software installation required
    • Package comes with DC 5V 3A power adaptor for more stable display
    • Anti-skid pads
    • 1 year warranty
    Specification
    Model MHS1614
    Features Split 1 HDMI input signal to 16 output signals
    Input Port HDMI 19 pin Type A female*1, USB B Type*1, RS232*1
    Output Port HDMI 19 pin Type A*16
    Bandwidth 10.2 Gbps
    Highest Resolution 480p, 576i, 720p, 1080i, 1080p, 4K*2K
    Operating Temperature/th > 0~70℃
    Store The Temperature -10~80℃
    Power Supply DC 5V 3A
    Size (mm) 438(L)*170(W)*43.5(H)

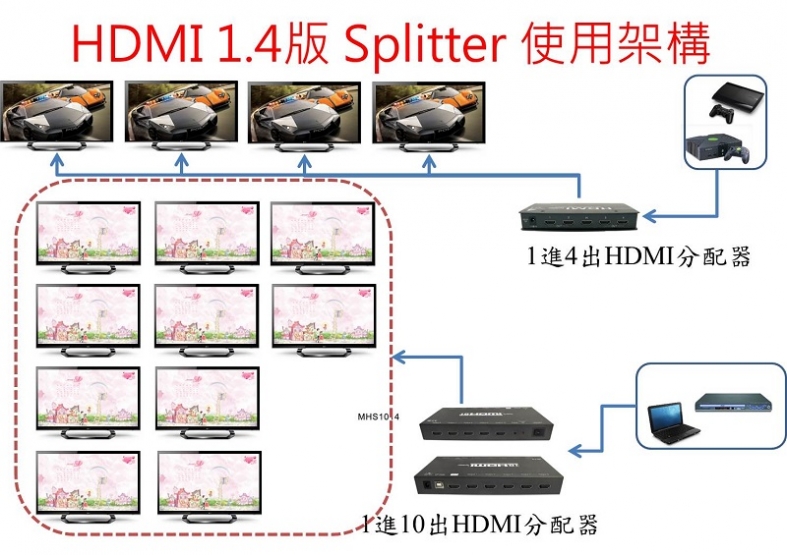

    Applications
